1      What is?

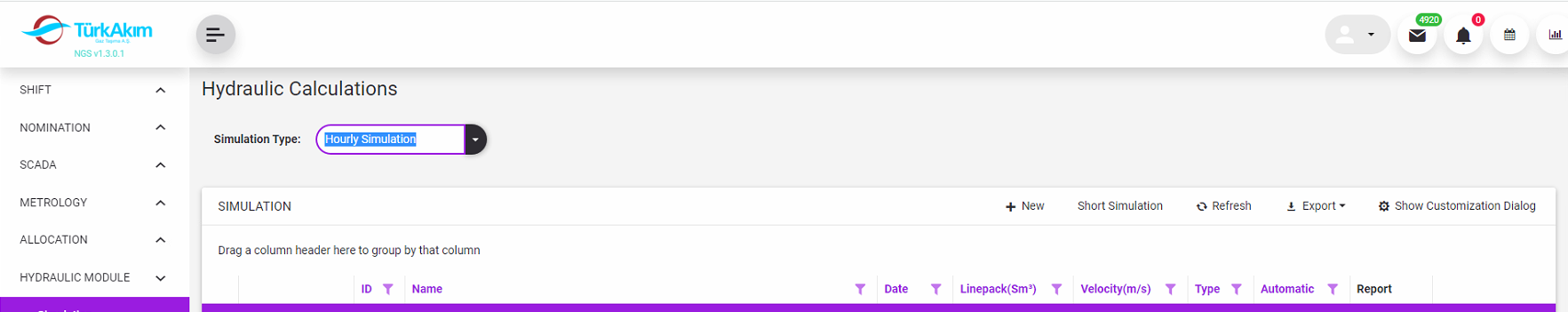

This Submodule lists all hydraulic simulations. Also, Hydraulic calculation are made in this submodule.


2      About whom?

Since the system is parametric, it is in a structure that can be changed by the authorized or the system administrator. But basically, this section has been developed for the use of:

This submodule is used by dispatchers.


3      Main Features

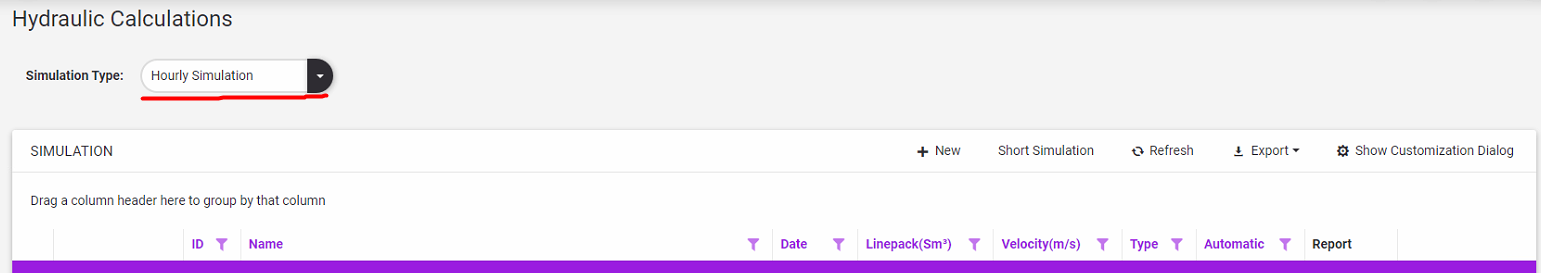

List can be filtered by Simulation type.

Hourly hydraulic simulations are made automatically at every hour by the system.


In Hourly simulation, all values use in hydraulic calculations are values at every hour taken from Scada.

Line pack and Velocity value are calculated separately for each line and then line pack and velocity are calculated using these values for the entire pipeline.

Hourly Simulation can be reported by clicking Report button.



In Report, all input values and output values are shown separately for each line in details. Also includes velocity diagram, pressure diagram and line pack diagram.
