1      What is?

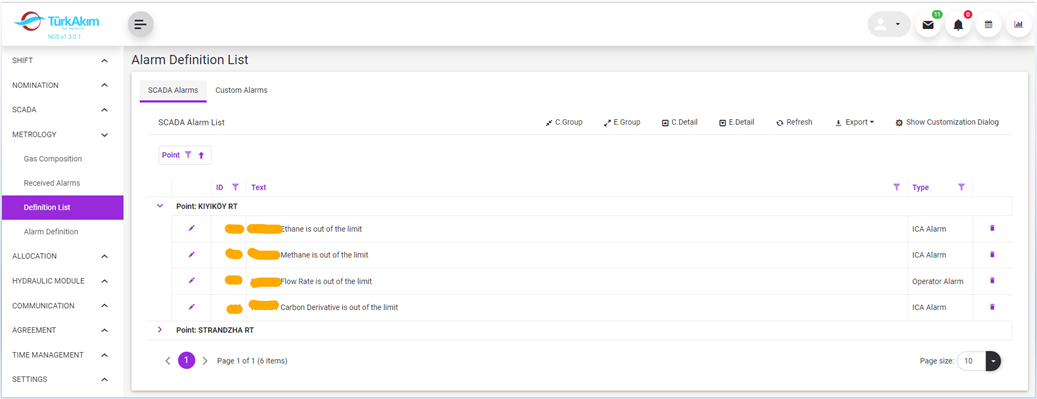

This submodule provides the identification and management of the custom and SCADA alarm definitions in the system.


2      About whom?

This section is used by Dispatcher Director, Dispatcher, SCADA Automation, and Metrologist.

3      Main Features

3.1        Listing Features

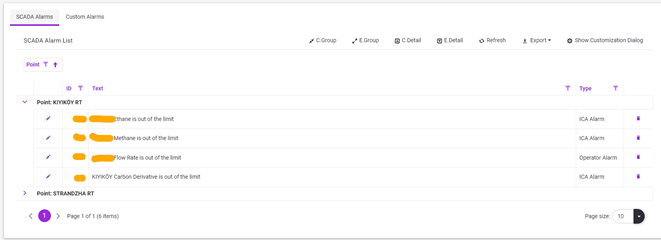

3.1.1        SCADA Alarm List

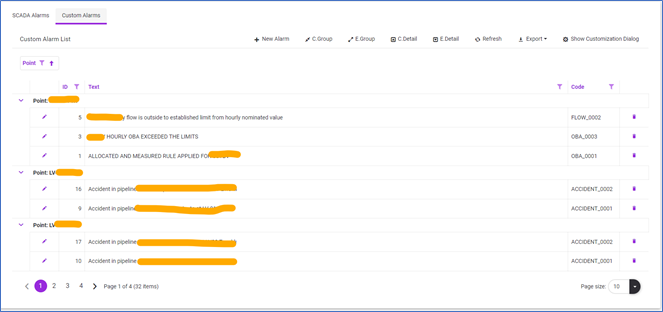

3.1.2        Custom Alarm List

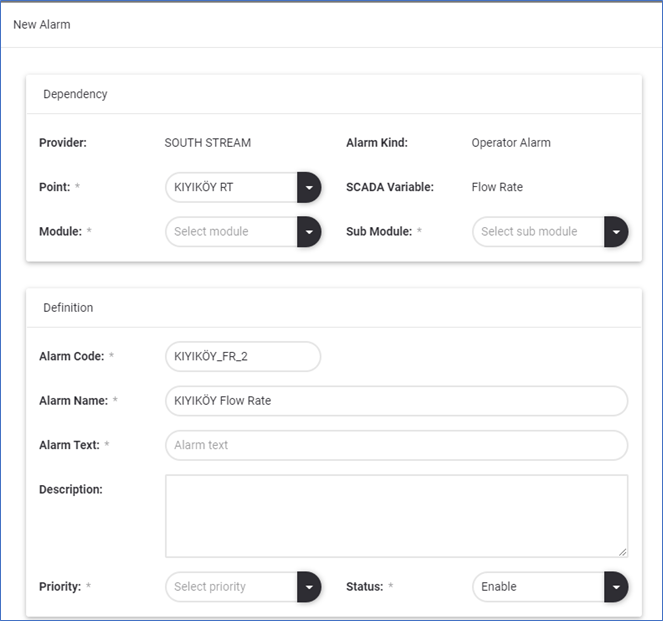

•A new line is defined with this button.

oThe module and sub module to which the alarm depends on selected from the module/sub module list.

oThe code and name of the alarm name and alarm text are required.

oThe definition of the alarm should be clearly described in description field.

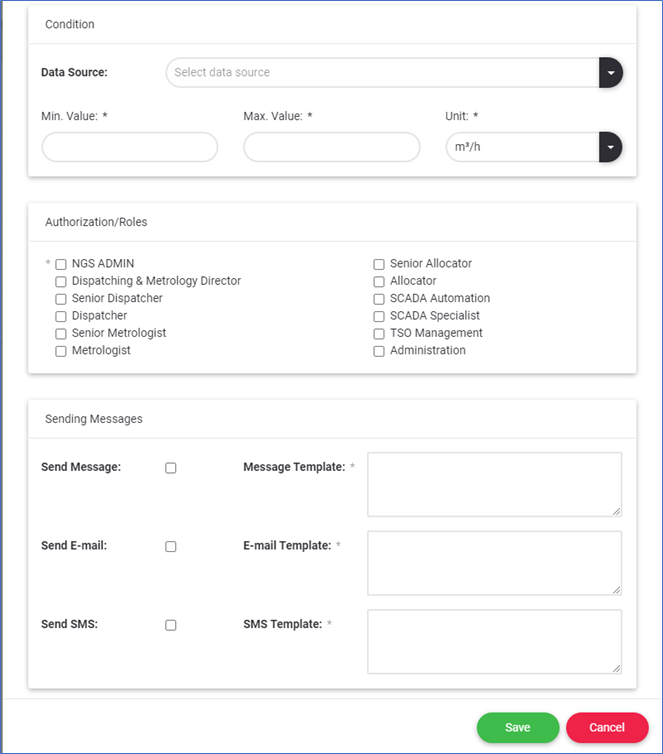

oThe data source, min max limit values of the alarm should be defined in data source section.

oThe URL address of the report will be assigned by the software development unit after development.

oIt is mandatory to define the roles authorized to receive the alarm. Authorization for the alarm definition can be updated later.

oThe template content is entered through which communication channel the alarm will be notified.

•In addition to the general listing features in the system, and feature of all row details can be used.

•The detail of the row related to the button at the beginning of the row can be expanded.

•In Detail listing, all features of listing can be used.

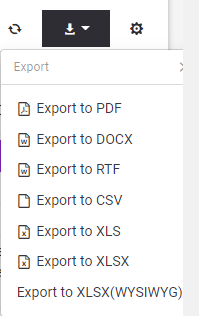

3.2        Export File

To export the alarm list to outside as a file, should be clicked export button and chosen appropriate file type.
