1      What is?

This submodule provides the identification and management of the custom and SCADA alarm definitions in the system.


2      About whom?

This section is used by Dispatcher Director, Dispatcher, SCADA Automation, and Metrologist.

3      Main Features

3.1        Listing Features

•A new line is defined with this button.

oThe module and sub module to which the alarm depends on selected from the module/sub module list.

oThe code and name of the alarm name and alarm text are required.

oThe definition of the alarm should be clearly described in description field.

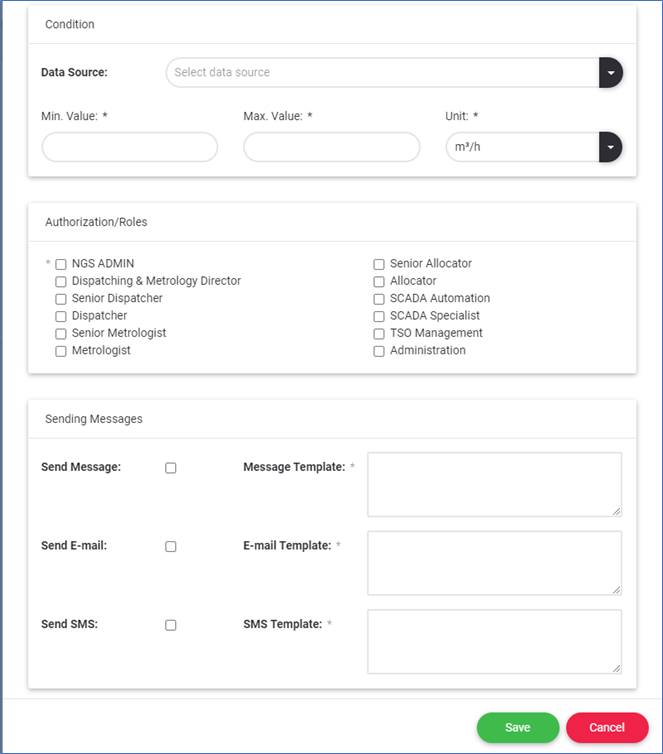

oThe data source, min max limit values of the alarm should be defined in data source section.

oThe URL address of the report will be assigned by the software development unit after development.

oIt is mandatory to define the roles authorized to receive the alarm. Authorization for the alarm definition can be updated later.

oThe template content is entered through which communication channel the alarm will be notified

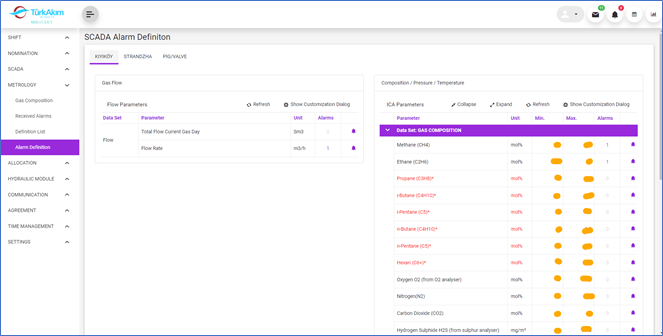

•Entry Point

•Exit Point

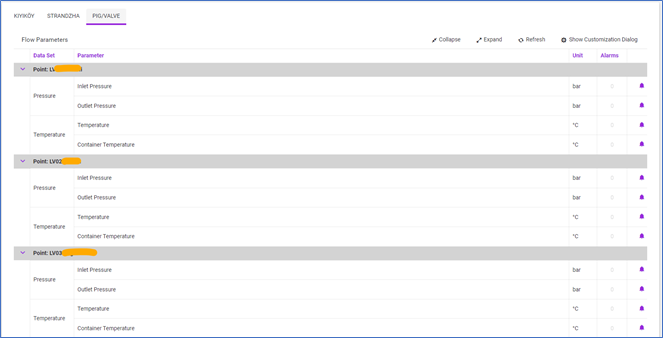

•PIG and Valve
