1      What is?

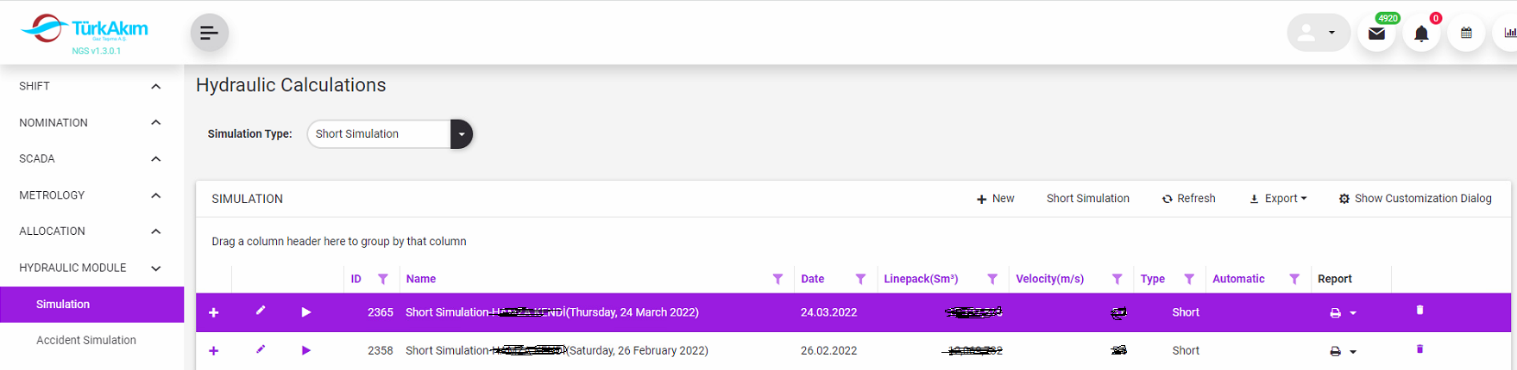

This Submodule lists all hydraulic simulations. Also, Hydraulic calculation are made in this submodule.


2      About whom?

Since the system is parametric, it is in a structure that can be changed by the authorized or the system administrator. But basically, this section has been developed for the use of:

This submodule is used by dispatchers.


3      Main Features

In this module, Hydraulic calculation are made, and the results are listed and reported.

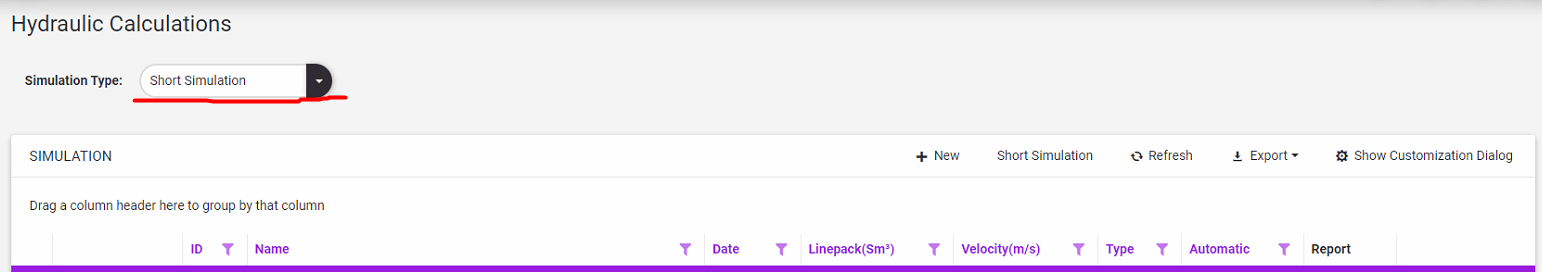

List can be filtered by Simulation type.


By clicking Short Simulation button, line pack of TAGTAŞ pipeline can be calculated fast.

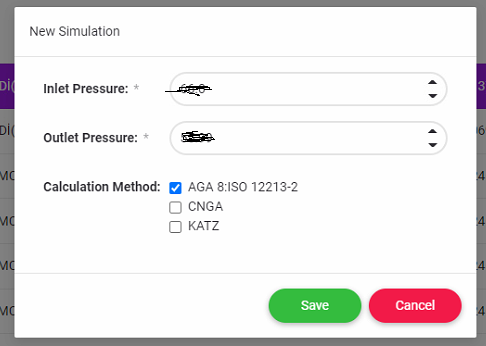

After clicking Short Simulation button New Simulation popup window is opened.



Inlet pressure value is current inlet pressure of PIG station taken from SCADA.

Outlet pressure value is current outlet pressure of Strandzha taken from SCADA.

There are 3 calculation methods. AGA, CNGA and KATZ.


By clicking Save Button, Line pack and Velocity are calculated. And short simulation report is opened automatically.

In Short simulation, all values use in hydraulic calculations are current values taken from SCADA.

Line pack and Velocity value are calculated separately for each line and then line pack and velocity are calculated using these values for the entire pipeline.

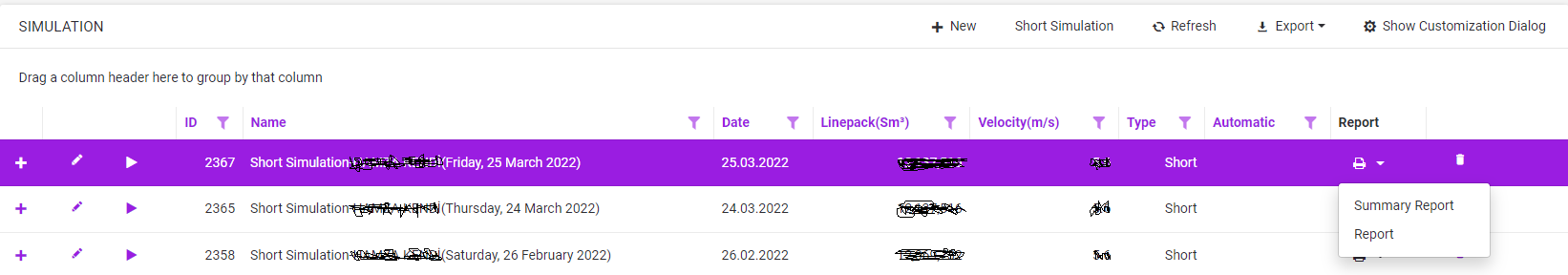

Short Simulation can be reported by clicking Summary Report or Report button.

In summary report, base conditions, average temperature, flow rate, gas components, pipeline profile data, Compressibility factor and Line pack  are shown.

In Report, all input values and output values are shown separately for each line in details. Also includes velocity diagram, pressure diagram and line pack diagram.
