1      What is?

This Submodule lists Nomination Messages which is sent by GPE to TAGTAS. In addition, nominations can be created by manually uploading nomination documents by dispatchers via this module.

2      About whom?

Since the system is parametric, it is in a structure that can be changed by the authorized or the system administrator. But basically, this section has been developed for the use of:

This submodule is used by dispatchers

3      Main Features

In this module, Nomination messages are listed.

By selecting the gas year and gas day, the nominations sent for the relevant gas day are listed.

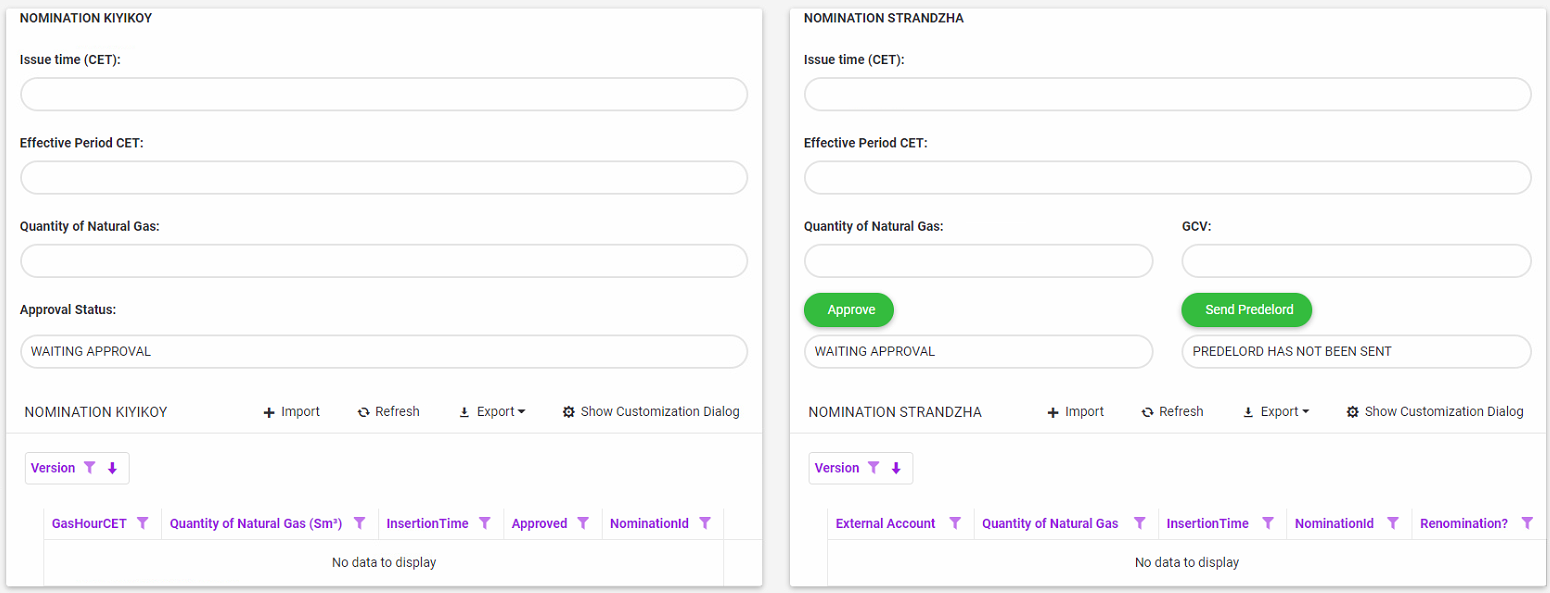

Nominations for the entry point(KIYIKOY) are listed on the left side of the screen, and nominations for the exit point(STRANDZHA) are listed on the right.

By using Import button, nomination document (excel file) can be imported to system.

If the nomination messages are imported, Nominations should be approved by pressing Approve button.

4      Sample Scenarios

oCreating Nominations Manually


1.Choose Gas Day and Insert Date.

Insert Date is very important. Because the system starts the Nomination or renomination process according to the insert date

2.Press import button in the grid toolbar.

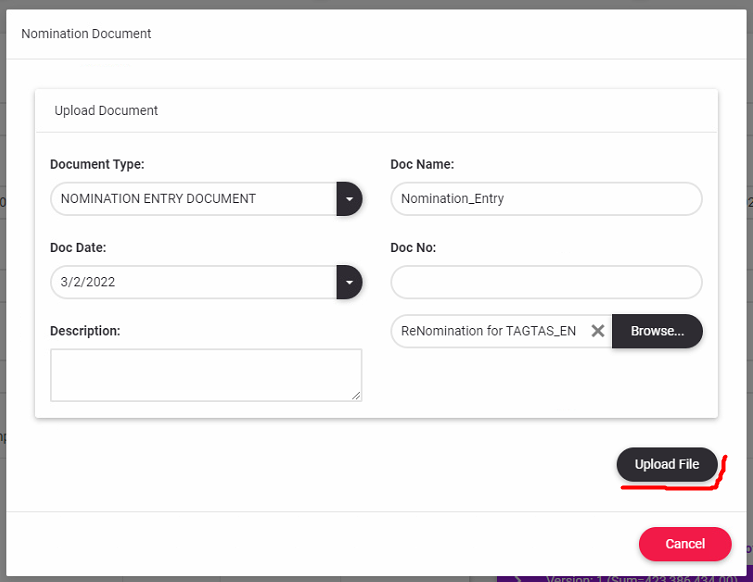

3.It opens Nomination document popup window.


4.Press Browse button to select Nomination Entry Document.

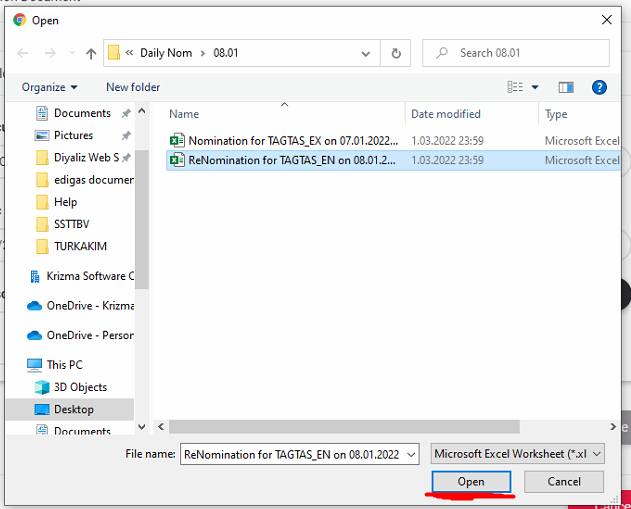

Select File and press Open.



5.Press Upload File

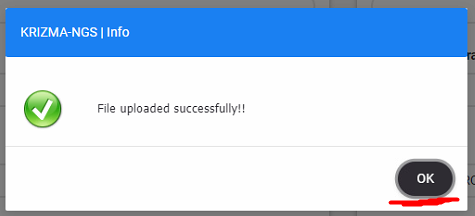

After pressing upload file button, Nomint submodule reads excel and process. And then Info message is shown. Press OK button in Info Message window.


6.Nomination is listed on the grid.

7.First 6 item is applied for Exit Point

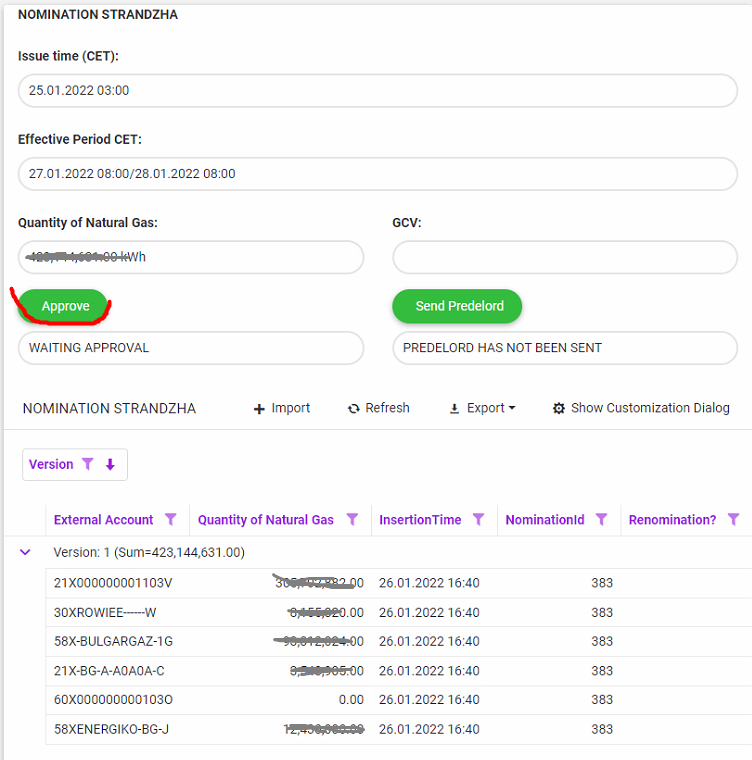

8.After Exit Nomination are saved, Nominations should be Approved.

After Approval, System will send Predelord Message to BTG at 17:01 CET automatically over AS4.


oCreating Nomination Messages Automatically (Over AS4)

If GPE sends Nomination Messages over AS4, KYNGS AS4 Communication system receives Nomination Messages automatically and transmits data to KYNGS Nomination Module.

After Nomination Messages received, system will send Predelord Message to BTG at 17:01 CET automatically over AS4.
