1      What is?

This section covers to list the calculated Hourly OBA values for days.


2      About whom?

Since the system is parametric, it is in a structure that can be changed by the authorized or the system administrator. But basically, this section has been developed for the use of:

This section is used by Dispatcher Director, Dispatchers and Allocator.

3      Main Features

Hourly OBA calculations are automatically calculated by the system after receiving hourly flow values ​​provided by the SCADA data system according to formula as follow.

3.1        Hourly OBA Calculation

•BTG

oBTG Hourly OBA (Sm3) = GPE Hourly Nomination - BTG Hourly Value

oBTG Hourly Estimated Value = Total GPE Hourly Nomination - Total BTG Hourly Value (until the moment of calculation)

•SSTTBV

oSSTTBV Hourly OBA = GPE Hourly Nomination - SSTTBV Hourly Value

oSSTTBV Hourly Estimated Value = Total GPE Hourly Nomination - Total SSTTBV Hourly Value (until the moment of calculation)

•SIMULATED HOURLY OBA

oEstimated BTG Total OBA = Last BTG OBA + Total BTG Hourly OBA

oEstimated SSTTBV Total OBA = Last SSTTBV OBA + Total SSTTBV Hourly OBA

3.2        Limit Exceeded

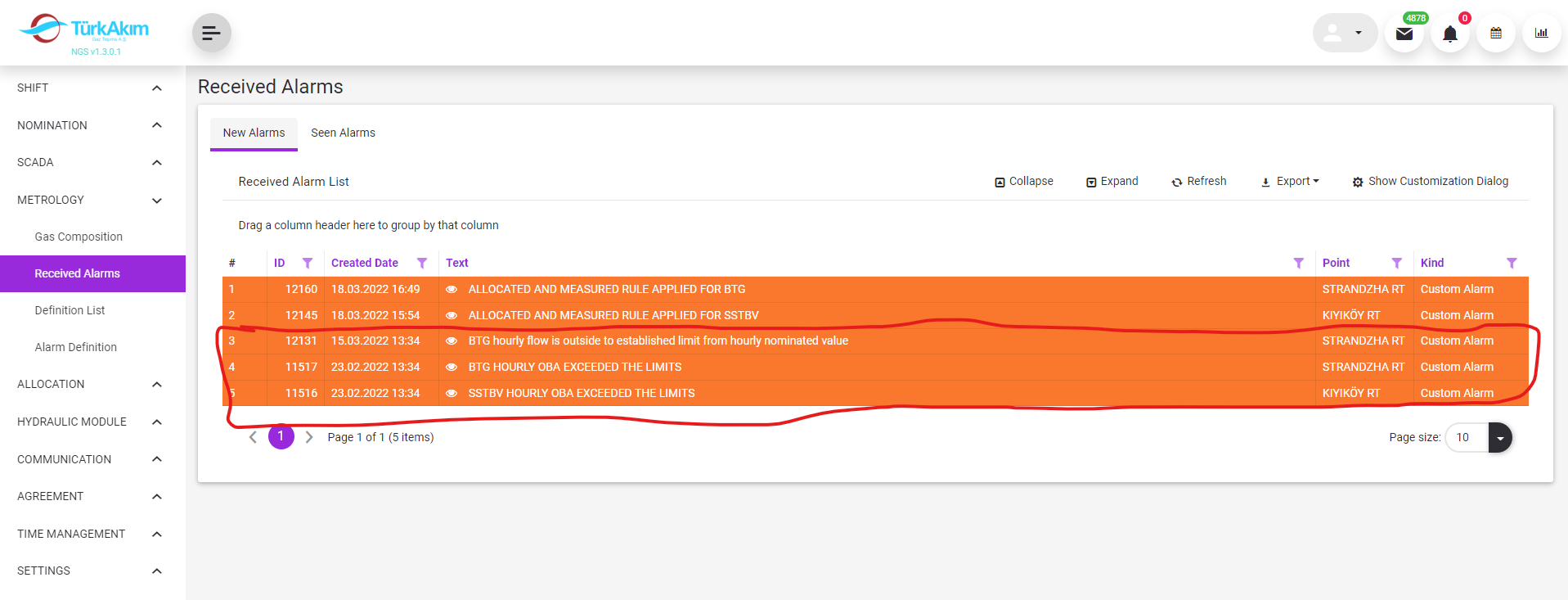

When the OBA limits are approached or the OBA limits are exceeded, the user is warned with animated alerts which are listed in Received Alarms.
