1      What is?

This submodule allows to define nomination times for each nomination process.


2      About whom?

This submodule is used by Dispatcher Director.

3      Main Features

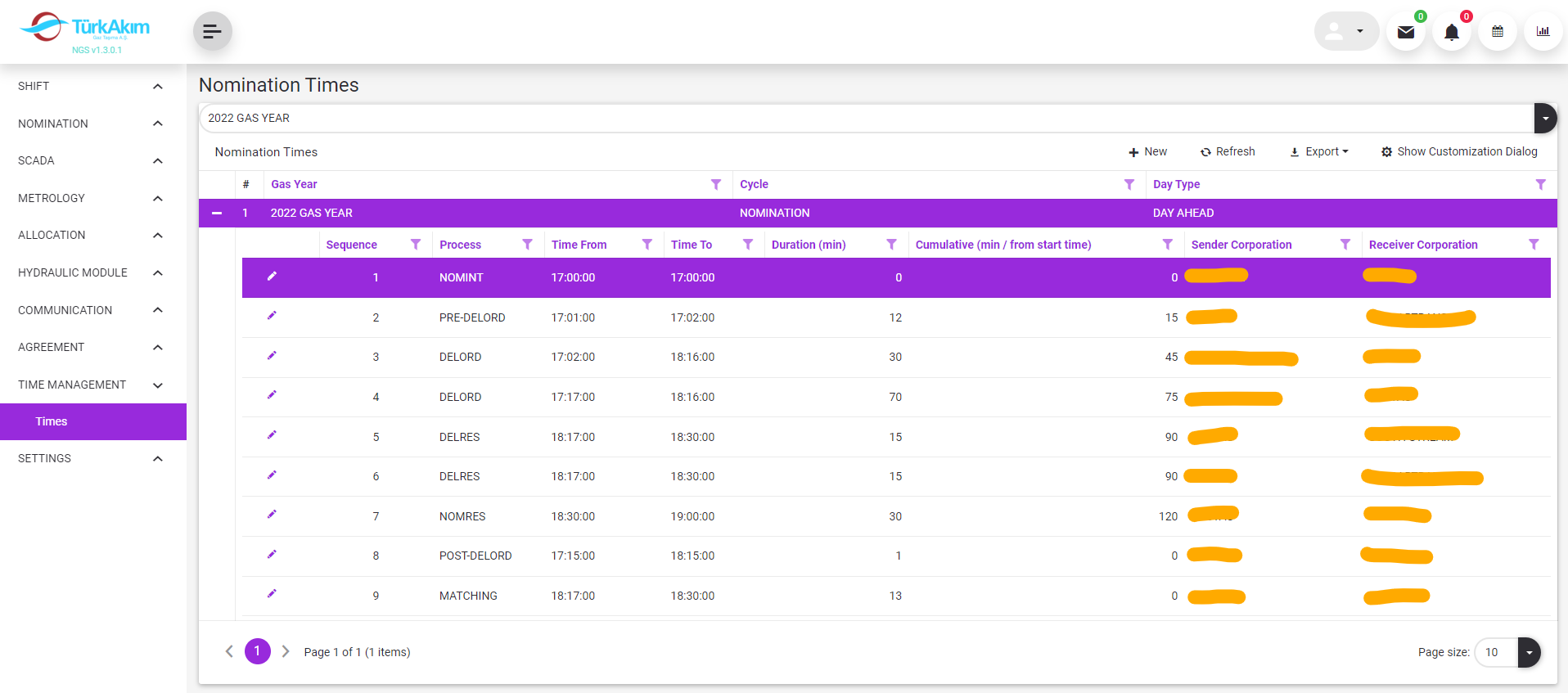

In this module, defined nomination times according to gas year are listed.


3.1        Creating /Editing Nomination Time

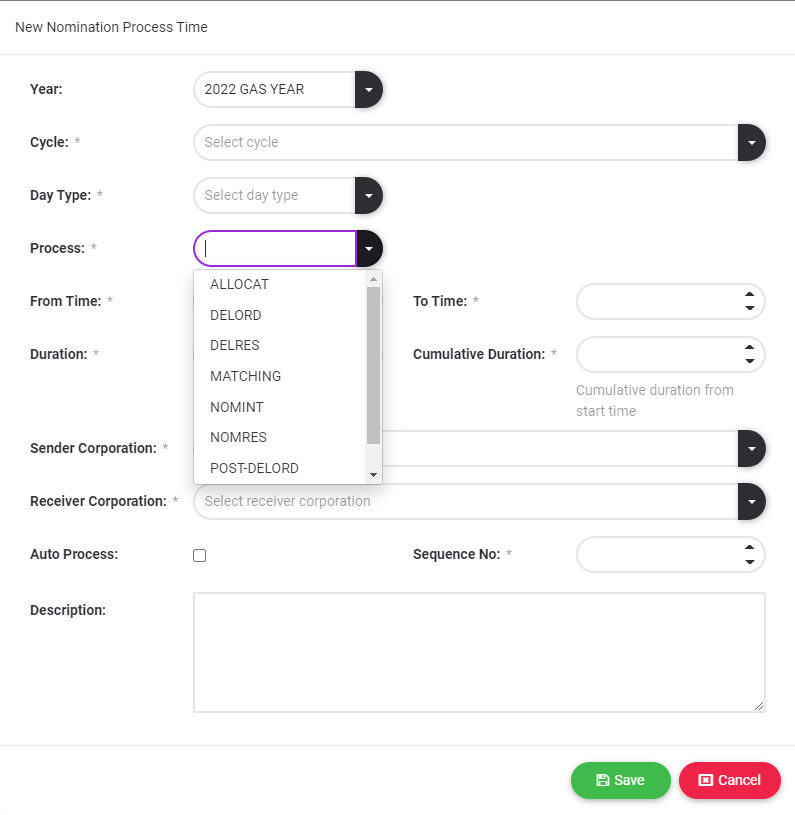

1.A new nomination time is defined with this button.



a.There are two cycles that can be selected.

•NOMINATION

•RENOMINATION


b.For each cycle has two-day type that can be selected.

•DAY AHEAD

•INTRA DAY


c.For each nomination time should be defined for a process. These processes,

•ALLOCAT

•DELORD

•DELRES

•MATCHING

•NOMINT

•NOMRES

•POST-DELORD

•PRE-DELORD


d.Duration refers the difference of start-end times.

e.Cumulative Duration refers the cumulative duration from start time as minute.

f.Who is involved in the process is specified by the Sender and Receiver Corporation.

g.If “Auto Process” is checked, the time definition will be subject to automatic processing.

2.The defined nomination time is edited with this button.

3.2        Export

To export the nomination time list to outside as a file, should be clicked export button and chosen appropriate file type.
