1      What is?

Gas flow values are displayed according to the point, value, and time options from the SCADA system.

Gas flow values are listed according to the following value and time types.

•Value Types:

oCURRENT

oLAST

oMINIMUM

oMAXIMUM

oAVERAGE

oSUM

•Time Types

oCURRENT

oMINUTELY

oHOURLY

oDAILY

oWEEKLY

oMONTHLY

oYEARLY

2      About whom?

This section is used by Dispatcher Director, Dispatcher, and SCADA Automation.

3      Main Features

3.1        Listing Features

1.Filter Options

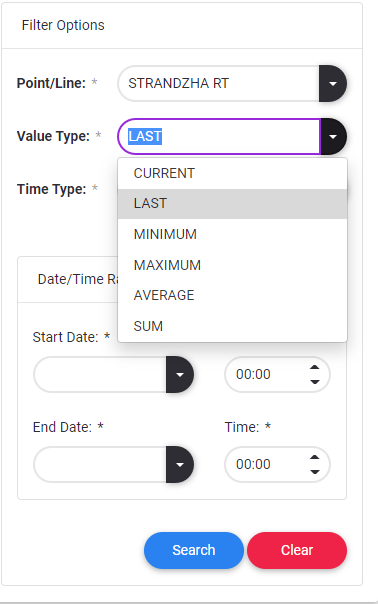

Value Types:

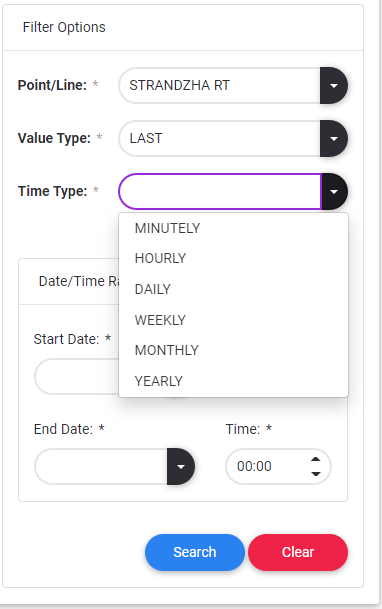

Time Type:

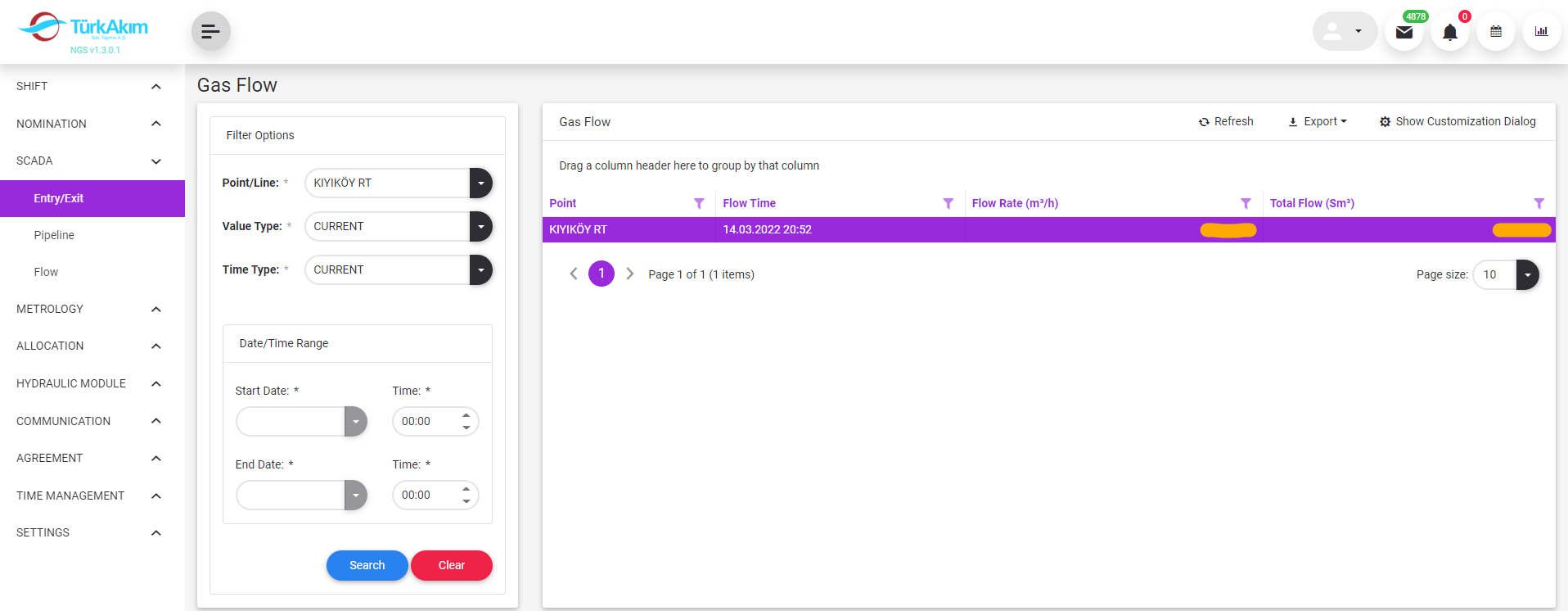

2.Entry Point

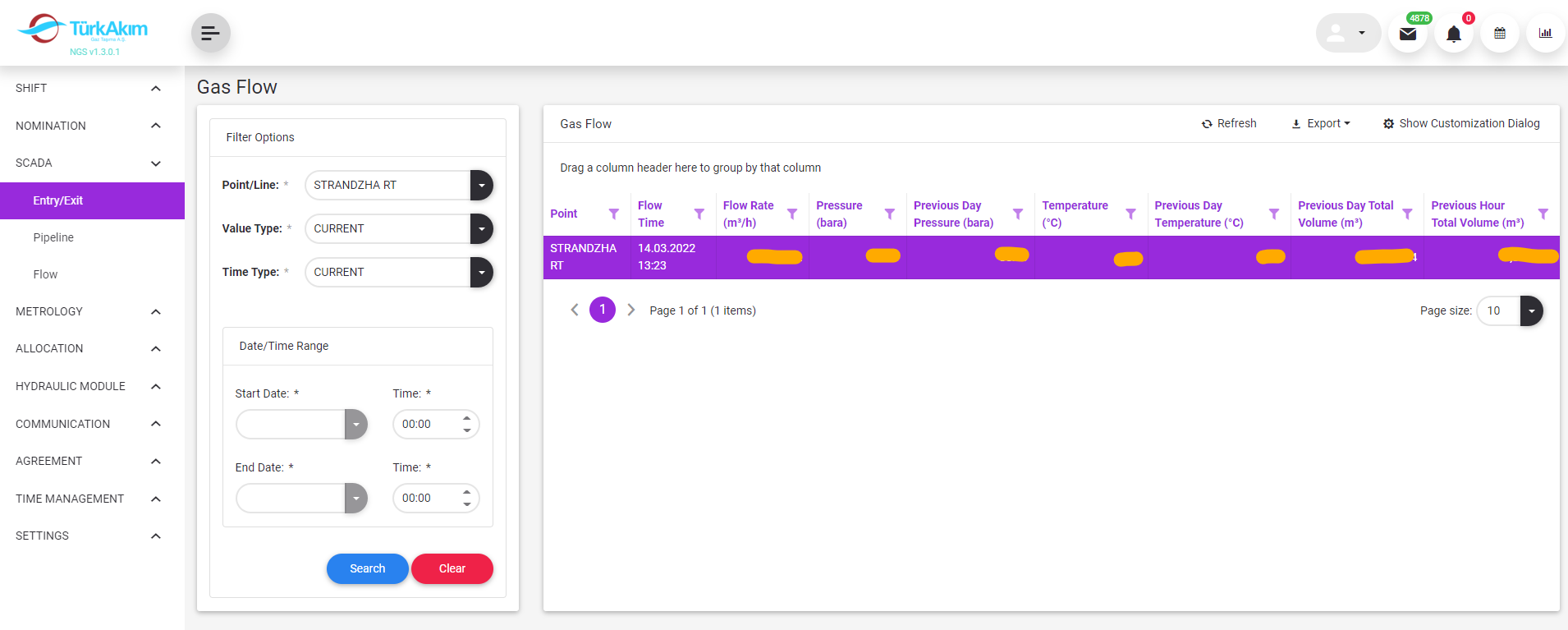

3.Exit Point

3.2        Export File

To export the gas flow list to outside as a file, should be clicked export button and chosen appropriate file type.
